Wallace® SureView
Ultrasound Visible Embryo Transfer Catheters
The unique SureView catheter allows full visibility under ultrasound6 guidance whilst incorporating the hand crafted tip of the widely successful Classic catheter. Ultrasound guided embryo transfer procedures have been recognised by many clinicians and embryologists to improve pregnancy rates.7-12
Availability
This product is available for sale worldwide. It is not available for sale in Taiwan.
Key Features
- Visible under ultrasound from hub to tip7
- More accuracy and confidence when positioning catheter tip within uterus for embryo transfer
- Combines benefits of the Classic range with SureView patented technology
- Compatible with the Wallace Malleable Stylet for difficult transfers
- The SureView range is fully compatible with the Classic range
The patented SureView technology allows full visibility under ultrasound guidance

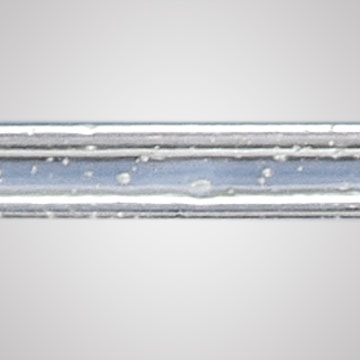

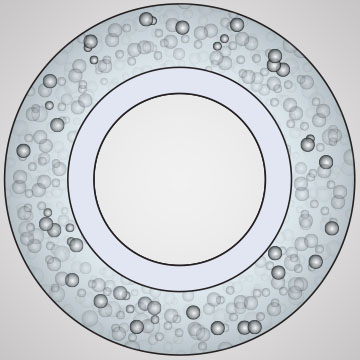

SureView Micro bubbles are present throughout catheter length
Product Specifications
| Inner catheter (ID) | 0.76mm |
| Inner catheter (OD) | 1.52mm |
| Outer sheath (OD) | 2.3mm |
| Volume of catheter not including hub (18cm catheter) | 0.081ml (81µl) |
| Volume of catheter not including hub (23cm catheter) | 0.104ml (104µl) |
| Volume per cm length of catheter | 0.0045ml (4.5µl) |
| Suggested loading volume | 0.5 to 1cm = 2.25 to 4.5µl |
| Stylet OD | 1.52mm |
| Stylet protrusion from outer sheath | 2.0mm |
Product codes
| Product | Order Code |
|---|---|
| Rigid Stylet for introducing the 23cm – Quantity: 10 | 1816NST |
| Rigid Stylet for introducing the 18cm – Quantity: 10 | 1816ST |
| Soft 18cm Ultrasound – Quantity: 10 | CE118 |
| Soft 23cm Ultrasound – Quantity: 10 | CE123 |
| Trial transfer catheter blind end (18cm) ultrasound visible – Quantity: 10 | CE418 |
| Trial transfer catheter blind end (23cm) ultrasound visible- Quantity: 10 | CE423 |
Brochures, Catalogs & Flyers
Instruction for Use
Instruction for Use
Brochures
Brochures
7. Coroleu, B et al. (2006). “Effect of using an echogenic catheter for ultrasound-guided embryo transfer in an IVF programme: a prospective, randomized, controlled study” Human Reproduction. Advanced Access. doi:10.1093/humrep/del045
8. Wood, E et al. (2000) “Ultrasound-guided soft catheter embryo transfers will improve pregnancy rates in in-vitro fertilization.”Human Reproduction. Vol.15, No.1, pp.107-112.
9. Sallam, H et al. (2003). “Ultrasound-guided embryo transfer: a meta-analysis of randomized controlled trials.” Fertility and Sterility. Vol.80, No.4, pp.1042-1046.
10. Coroleu, B et al. (2000). “Embryo Transfer under Ultrasound guidance improves pregnancy rates after in-vitro fertilization.”Human Reproduction. Vol.15, No.3, pp.616–620.
11. Anderson, R et al. (2001). “Transvaginal ultrasound-guided embryo transfer improves outcome in patients with previous failed in vitro fertilization cycles.” Presented at Pacific Coast Reproductive Society. Rancho Mirage, California, April 25th-29th 2001.
12. Shamonki, M.I et al. (2005). “Ultrasound-guided trial transfer may be beneficial in preparation for an IVF cycle.” Human Reproduction. Vol.20, No.10, pp.2844–2849.
